Connecting to Evo#

Wired#

Connect the Evo via the Type-C port to your computer. The COM Port will be shown in the IDE.

Selecting Board & Port#

Arduino

  1. Connect the EVOX1 to the computer and turn it on. A new port will appear in the drop down on the top left corner

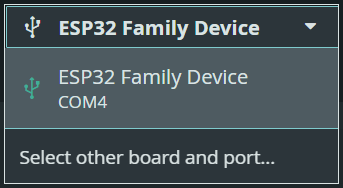

Board & Port Dropdown

  1. Click on Select other board and port…

  2. Search for ESP32S3 Dev Module and make sure that the correct COM Port is selected

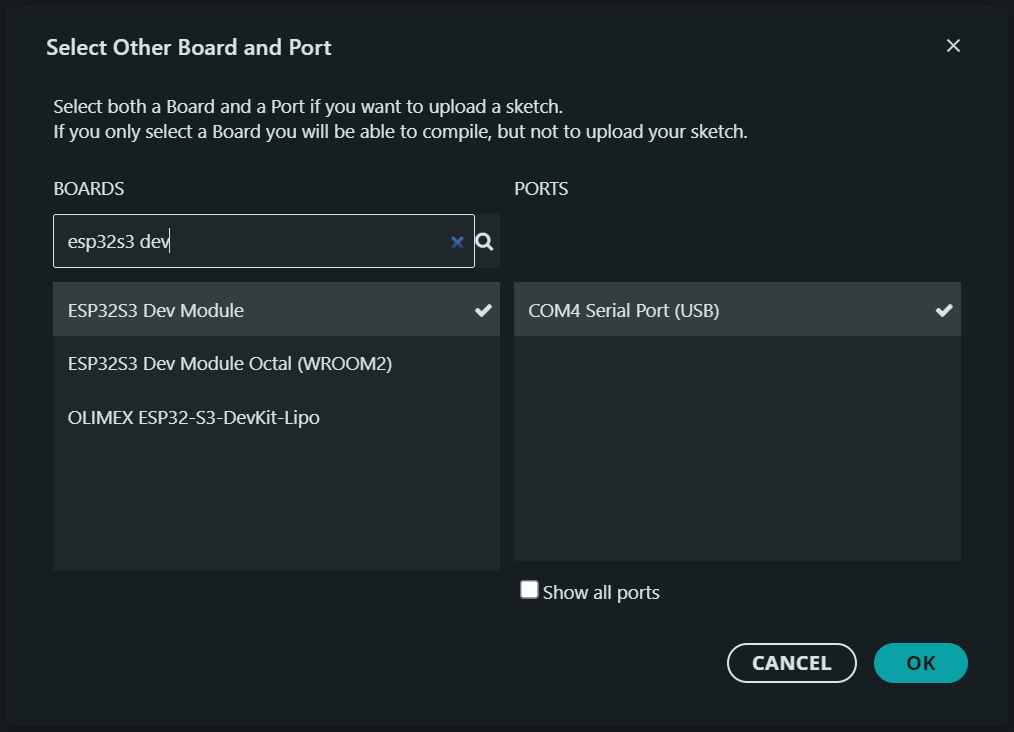

Board & Port Selection

PlatformIO

By default, PlatformIO can recognise ports and will automatic set COM port for you (Auto). If you wish to specify the port, you can select them from the PlatformIO Toolbar.

  • PlatformIO: Home

  • PlatformIO: Build

  • PlatformIO: Upload

  • PlatformIO: Clean

  • PlatformIO: Serial Monitor

  • Set Port [Select This]

Toolbar Selection

Enabling USB Serial Port#

The EVOX1 uses the USB peripheral pins for program upload and serial communication.

Arduino

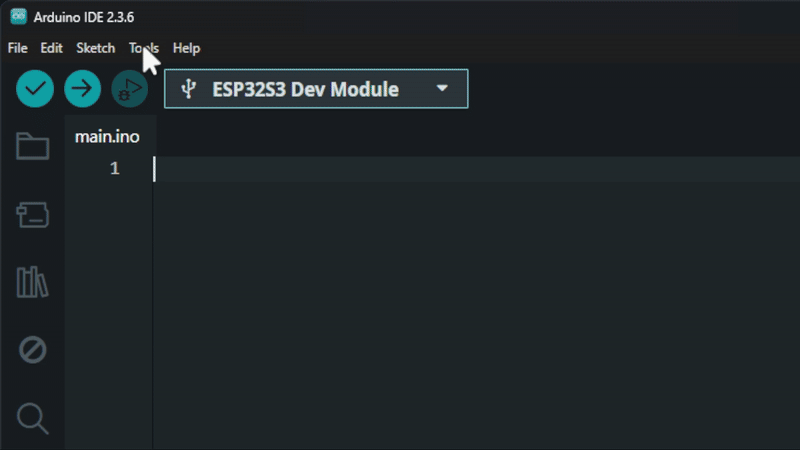

To enable the serial port, click on tools USB CDC on Boot Enabled

USB CDC Enabled

PlatformIO

To enable the serial port, include this line at the end of the code in platformio.ini

build_flags = -DARDUINO_USB_CDC_ON_BOOT=1

monitor_speed = 115200
upload_port = COM4
monitor_port = COM4
