PlatformIO IDE in VSCode#

PlatformIO is a cross-platform, cross-architecture, multiple framework, professional tool for embedded systems engineers and for software developers who write applications for embedded products.

IDE Installation#

Before starting make sure to download and install Visual Studio Code.

Steps to Download PlatformIO IDE

  1. Open VSCode

  2. Go to the Extensions tab & search “PlatformIO”

  3. Click install

  4. When prompted by PlatformIO, restart VSCode

Setting Up the Project#

Once you’re on PlatformIO’s Home page, select New Project. The program will then prompt you to choose a name for your project so be creative.

Type in Espressif ESP32-S3 and select the Espressif ESP32-S3-DevkitM-1 board from the boards dropdown menu.

Leave the Framework option on Arduino. The default project path on Windows is Documents/PlatformIO/Projects, but you’re free to save it wherever you like.

After clicking Finish, you’ll need to wait a bit while the board files are downloaded.

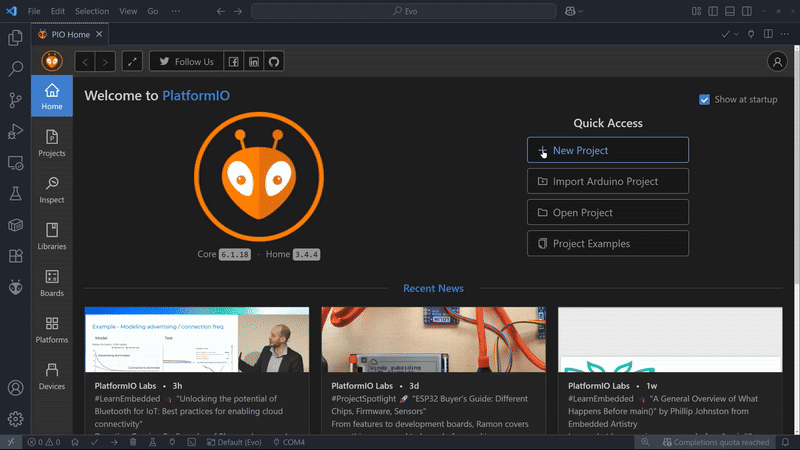

Opening Project in PlatformIO

Project Structure#

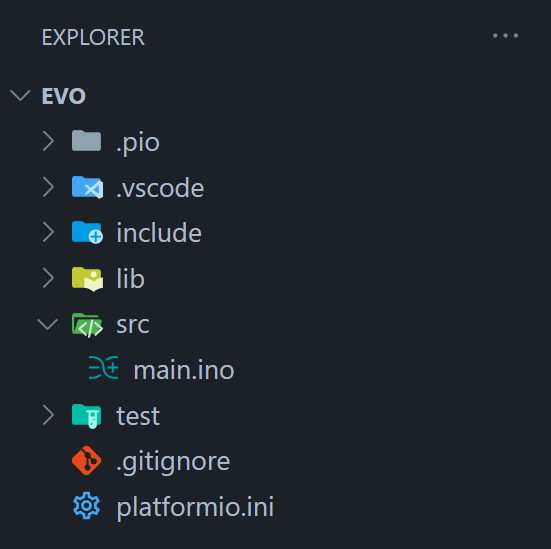

After creating a new empty PlatformIO project you’re ready for the next step. The PlatformIO project structure consists of the following:

platformio.ini

Project configuration file

src directory

Where you should place source code (*.h, *.c, *.cpp, *.S, *.ino, etc.)

lib directory

For the project-specific private libraries.

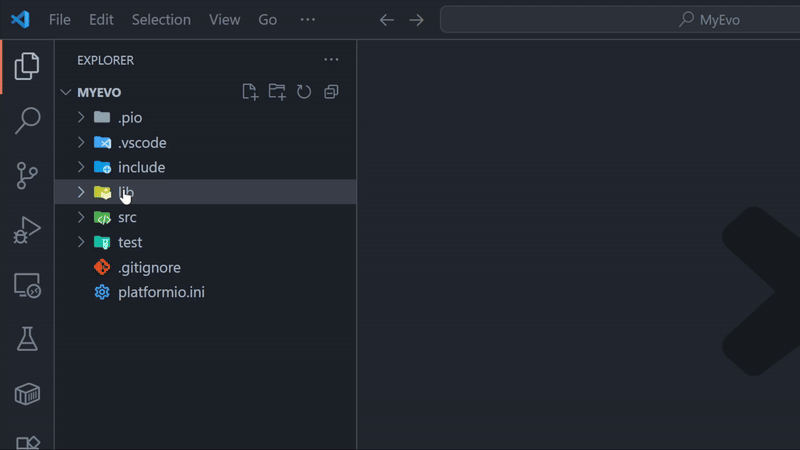

Revealing Library Folder in Explorer

Note

We will be placing the Evo Library in the lib folder.

Library Installation (Pre v1.0.0)#

  1. Go to to the Evo Github Releases Page

  2. Download the Source code .zip under Assets from the latest release.

  3. In VSCode Explorer:

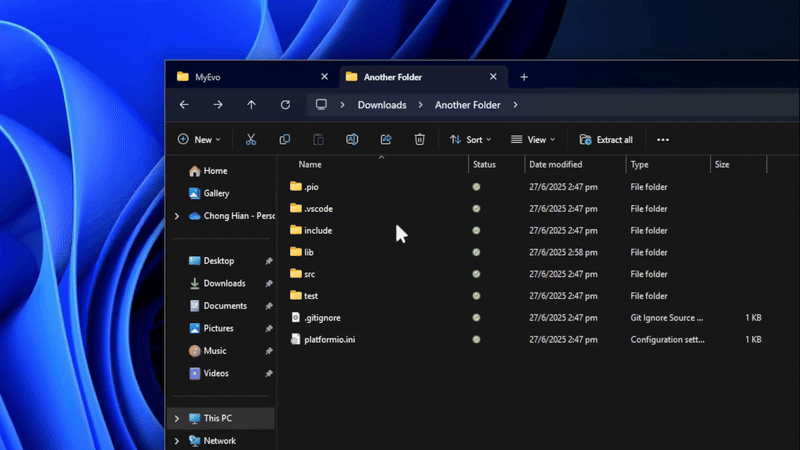

    • Right-Click on lib folder, select “Reveal in File Explorer”

    Revealing Library Folder in Explorer

    • Extract the contents in the .zip folder into the lib folder

    • Rename the extracted folder to “Evo”

    Placing Evo Library in Library Folder

  4. Go to the Libraries tab and search for the libraries listed below. Install them as such.

    • Adafruit NeoPixel by Adafruit

    • Adafruit PWM Servo Driver Library by Adafruit

    • EspSoftwareSerial by Dirk Kaar, Peter Lerup

    • ESP32Encoder by Kevin Harrington

    • Adafruit VL53L0X by Adafruit

    • Adafruit TCS34725 by Adafruit

    • Adafruit BNO055 by Adafruit

    Warning

    This list may grow over time, so check back here when new updates are released.

  5. Go to platform.ini to ensure the library dependencies lip_dep are listed correctly.

Library Installation (From v1.0.0)#

  1. Open platform.ini from your project folder.

  2. Under lib.deps add https://github.com/ljk1331ljk/EVO-arduino.git

  3. Save the file and PlatformIO will download the library.
